The RUSH BLADE F722 Stack for the DJI Digital FPV System by RUSHFPV features the RUSH BLADE F722 Digital Flight Controller and RUSH BLADE 60A 3-6S BLHeli_32 4-in-1 ESC (Extreme Edition), which can handle up to 6S input voltage and push your FPV racer to the max.
SPECIFICATIONS:
RUSHFPV RUSH BLADE F722 Digital Flight Controller For DJI Digital FPV System
- MCU： STM32F722RET6
- GYRO： ICM42688P
- BLACKBOX ：16MB FLASH
- BEC：INPUT 7-36V / 3-6S LIPO，OUTPUT 1 5V 3A，OUTPUT 2 10V 3A
- PORT： 8×PWM 5×UART 1×I2C
- ADC： V-BATT / CURR-ESC
- LED： WS2812 LED STRIP
- SIZE： 36.5mm*37mm*5.2mm
- BARO：BMP280
- MOUNTING HOLES：30.5*30.5mm
- TARGET： RUSH_BLADE_F7_HD WEIGHT 11g(without cable)
RUSHFPV RUSH BLADE 60A 128kHz 3-6S BLHeli_32 4-in-1 ESC - Extreme Edition
- Rated Current: 60A
- Peak Current: 80A
- Input Voltage: 3-6S Lipo
- MCU: F4 @ 200MHz
- PWM FREQ: 24-128KHz
- LED Color: Orange
- Weight：16.5g
- Dimension: 45*36.5*7.5mm
- BL32 FW: RUSH_BLADE_EXTREME
PACKAGE INCLUDES:
- 1 x RUSHFPV RUSH BLADE F722 Digital Flight Controller For DJI Digital V2 Version

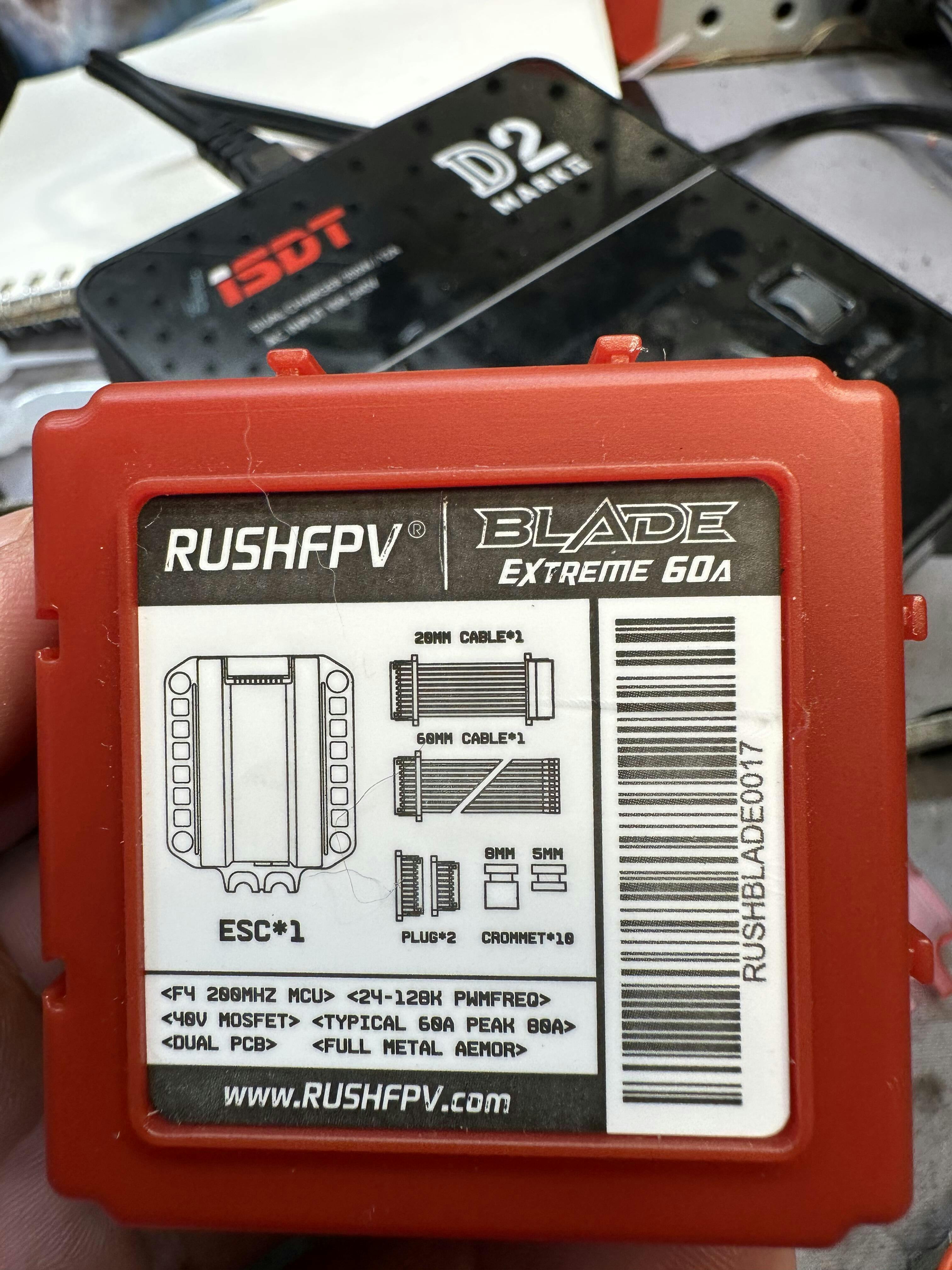

- 1 x RUSHFPV RUSH BLADE 60A 3-6S BLHeli_32 4-in-1 ESC - Extreme Edition
Customer Reviews

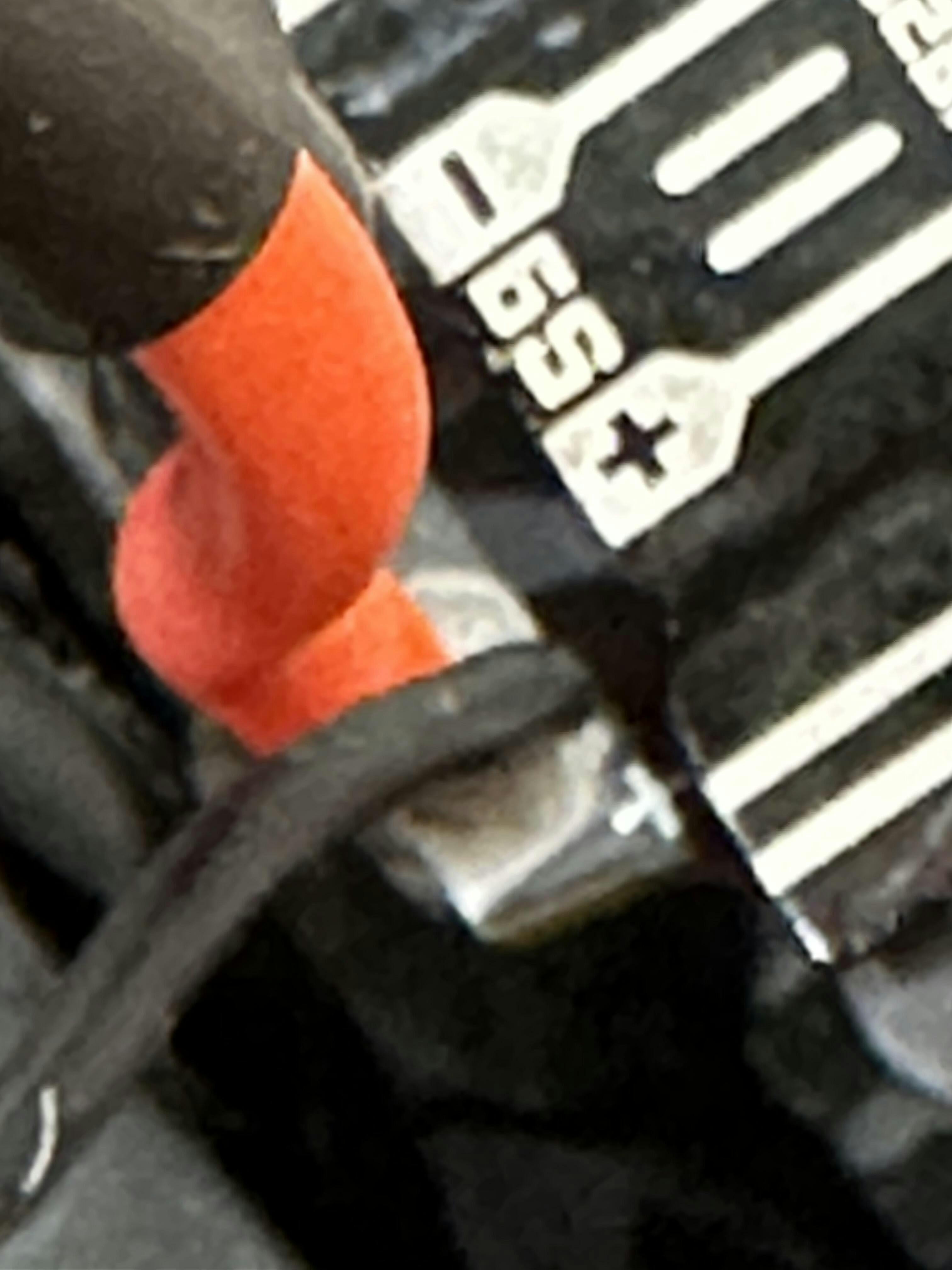

Installed ESC which failed was sparking upon power up testing. Attempted to contact Rushfpv. So far no go.

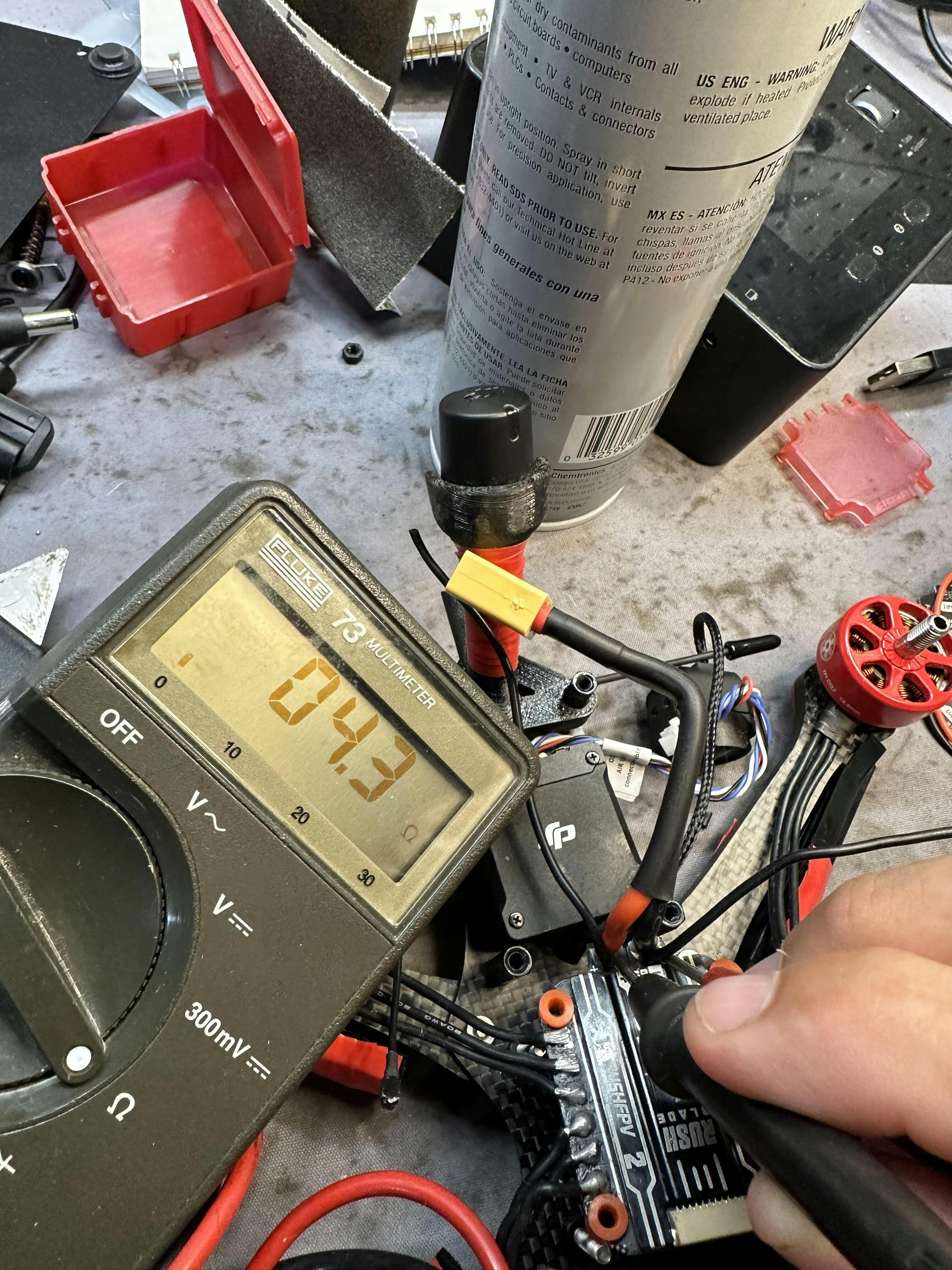

I needed to buy another ESC to replace faulty Extreme 60amp ESC. One must verify with multimeter before installation to save yourself some headache. I’m not sure
If they will reply to my customer service email. This comes with the hobby.
