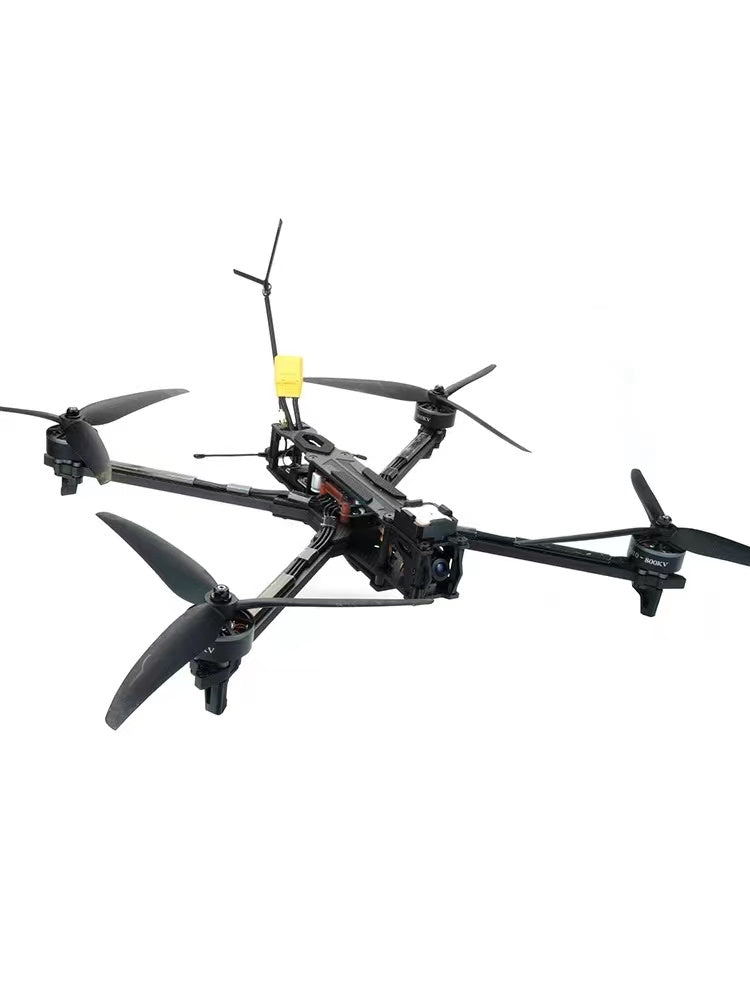

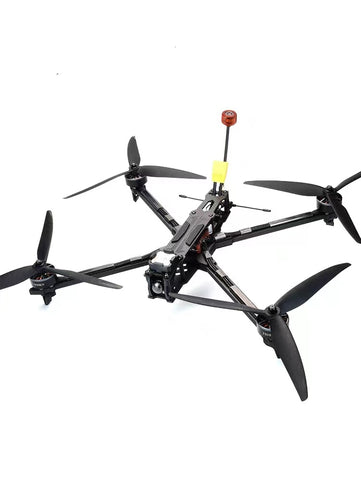

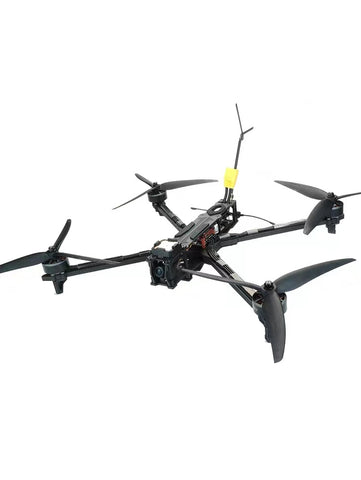

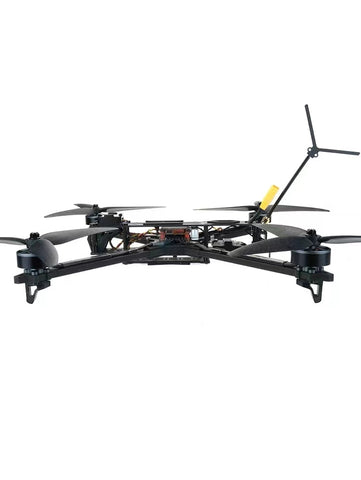

1. Product parameters
Rack: Armor 10
Wheelbase :410± 2mm
Motor :3110-kv900
Flight control :BLADE F722 V2
ESC :BLADE 60A EXT Camera :Caddx Ratel 2 VTX :SOLO 5.8G 1.6W
1.3G 800mw(with 1.3G dedicated reception)
Antenna :CHERRY SMA ultra extended 1.3G special antenna (used with 1.3G VTX)
GPS (standard): 251(with compass)
Blade :1050
Total weight :770g
video transmission distance: 4-5KM
Take-off weight (including 6s 8200MAH battery): about 1670g size (L * W * H):36cm*30cm*8cm
Load weight :1.5kg
Maximum speed :150km/h
Maximum take-off height :7000m
Maximum hover time :35min
Maximum flight range :35km
Maximum load :3.2kg
Recommended battery :6S 8000MAH(21700 battery)
DOGCOM 6S 8200MAH
2.Poduct characteristics
1, The use of SOLO1.6W high-power VTX, strong anti-interference
1.3G diagram transmission version has stronger diffraction.
2, The use of customized 3110 motor, strong power, large load
3, High-strength carbon plate, customized aircraft structure, to ensure stable flight
4, A variety of expansion design, can meet all kinds of sports cameras, professional camera mounting.
5, Standard XT90 interface, can install various types of batteries.
